Talk to an Engineer Engineered to DIN 223, ISO 6g/6h, and ANSI/ASME standard specifications. Available in standard stock or fully customized OEM/ODM geometries for high-volume Spanish manufacturing lines.
An Engineering Guide to Tool Metallurgy, Surface Coatings, and Custom OEM/ODM Die Selection for High-Stresses Industrial Applications across Iberian Production Facilities.
Modern industrial threading across Spain's prime industrial clusters—including Catalonia, the Basque Country, Madrid, and Valencia—demands cutting geometries engineered to withstand rigorous cyclic mechanical stress. Threading dies are subject to complex tri-axial forces, localized friction heating, and intense shear pressures during external thread cutting on stainless steels, structural alloy steels, and non-ferrous metals.
As a specialized OEM/ODM manufacturer, we utilize high-grade tool steel matrices tailored for specific machining environments:
Offers exceptional edge toughness and abrasion resistance. Ideal for general-purpose metric (DIN 223) and imperial (UNC/UNF) thread cutting on carbon steels and medium-alloy workpieces up to 800 N/mm² tensile strength.
Formulated specifically for heat-resistant materials, stainless steel (AISI 304/316), and titanium alloys. The addition of cobalt increases thermal hardness stability, preventing tooth breakdown under high SFM machining speeds.
Utilizing sub-micron carbide formulations (C2 for cast iron and non-ferrous alloys; C5/C6 for high-tensile alloy steel), our carbide dies deliver up to 8x higher tool longevity in continuous CNC thread production lines.
Tool failure in automated thread chasing often stems from built-up edge (BUE) formation and micro-welding at the chamfer entry teeth. To maximize performance for Spanish buyers, our OEM/ODM manufacturing process integrates specialized thin-film surface treatments:
| Workpiece Material | Recommended Die Substrate | Recommended Coating | Rake Angle Range | Speed (SFM / m/min) | Typical Spanish Industry Application |
|---|---|---|---|---|---|
| Structural Steel (S235/S355) | HSS 6542 / Alloy Steel | TiN / Bright | 12° - 15° | 25 - 35 m/min | Wind Tower Fasteners (Basque Region) |
| Austenitic Stainless (304/316L) | HSS-E (Co5%) / Carbide | TiAlN / TiCN | 8° - 10° | 10 - 18 m/min | Chemical Pumps & Valves (Catalonia) |
| Automotive Fasteners (Grade 8.8-10.9) | Tungsten Carbide (C5/C6) | TiAlN Coated | 10° - 12° | 40 - 65 m/min | Cold Heading & Threading (Martorell/Vigo) |
| PPR / HDPE Heavy Piping | High Speed Steel (HSS) | Bright / Chrome | 18° - 22° | Manual / 15 m/min | Building Infrastructure & Irrigation (Murcia) |
| Brass & Aerospace Bronze Alloys | HSS / C2 Carbide | Uncoated / DLC | 3° - 6° (Neutral) | 45 - 80 m/min | Aerospace Hydraulics (Seville Hub) |
Delivering precision threading die solutions customized to meet the distinct engineering standards of Spain's core industrial regions.

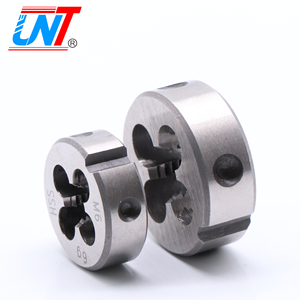

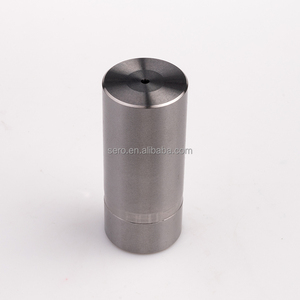

Spain is Europe's second-largest vehicle producer. Our OEM cold heading tungsten carbide dies, punches, and M1-M30 metric circular round dies (DIN 223) support high-speed fastener stamping and threading lines. They feature high impact toughness to handle high-duty bolt forming without micro-chipping.

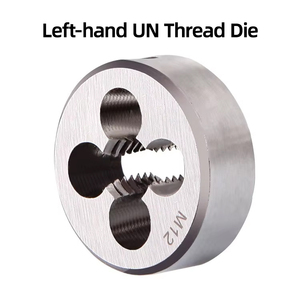

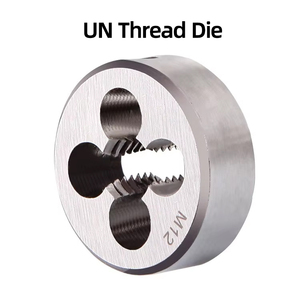

With Spain's massive investment in wind turbine manufacturing and green hydrogen infrastructure, component suppliers require heavy-duty UNC/UNF and reverse left-hand round threading dies for large anchor studs, flange connections, and hydraulic pitch adjusters.

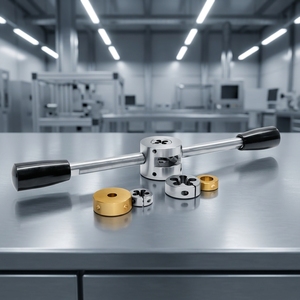

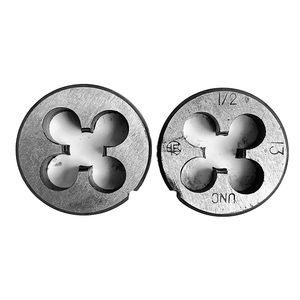

Our STC N40 PPR pipe dies and multi-size tube threading sets engineered for Medium/High Pressure (MP/HP/UHP) stainless tubing ensure zero-leak fluid transport connections in Spain's agricultural irrigation, industrial chemical plants, and commercial plumbing projects.
Understanding the technological shifts transforming Iberian tool procurement and manufacturing strategy.
Spanish machine shops are upgrading to multi-axis CNC turn-mill centers. This shift demands dies with ultra-precise pitch concentricity (under 0.005 mm) and optimized gullet relief to enable chip evacuation during rapid external threading cycles without tool clogging.
In response to global supply disruptions, Spanish OEMs are shortening procurement cycles by sourcing from established tool manufacturers with rigorous ISO quality controls, traceable metallurgy certifications, and rapid custom drawing turnaround.
EU environmental directives (REACH & RoHS compliance) are pushing factories in Spain toward dry machining and MQL. This amplifies the need for specialized PVD coatings (AlTiN/TiCN) and micro-honed cutting edges that maintain low cutting temperatures without heavy flood coolants.
Rooted in decades of precision toolmaking heritage (originally established in 1986), our enterprise combines American engineering methodologies with high-capacity CNC grinding facilities. We bridge the gap between standard stock delivery and bespoke engineering designs for European industrial importers.
Whether you require standard DIN 223 metric round dies, non-standard left-hand pitches, or custom carbide cold heading punches, our facility controls every step in-house—from carbide brazing and heat treatment to final optical profile verification.
Essential technical and procurement insights regarding standard compliance, customs, lead times, and custom tool modifications.
Send us your engineering CAD drawings, target workpiece specifications, or tooling catalog numbers. Our application engineering team will review manufacturability and reply within 24 business hours.
