In modern CNC machining, aerospace assembly, and heavy equipment fabrication, a Capscrew Counterbore is far more than a simple enlargement cutter. It is a critical geometry tool designed to plunge cylindrical flat-bottom recesses that seat Allen heads and standard Socket Head Cap Screws (SHCS) flush with or beneath the workpiece surface. Achieving perfect seating depth, smooth surface finish, and exact concentricity with the clearance pilot hole requires deep technical alignment between tool construction, carbide metallurgy, and cutting parameters.
Unlike standard milling cutters or end mills tasked with side-load profiling, a capscrew counterbore operates under heavy axial thrust loads. As the cutter plunges into the pre-drilled pilot hole, the integral or pilot pin guides the tool along the central axis of the fastener hole. The outer carbide flutes generate a clean 90-degree flat shoulder while sizing the counterbore diameter to standard ASME B18.3 or ISO 4762 clearance tolerances.
When selecting counterboring tooling for production environments, tooling engineers and procurement specialists frequently encounter critical failure modes with low-grade or solid-carbide tools: corner chipping on interrupted entries, severe chatter marks on flat bottom seats, pilot binding inside tight pilot holes, and sudden shank breakage caused by tool deflection. Rock River Tool’s American-manufactured carbide-tipped capscrew counterbores directly overcome these failure points by combining micro-grain carbide tips with a resilient, vibration-dampening alloy steel shank body.
Browse our core standard configurations engineered for immediate shop-floor reliability. Every tool family is backed by Rock River Tool’s rigorous quality control standards, manufactured in our Illinois manufacturing facility since 1986.

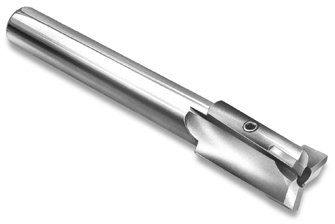

The industry standard for CNC milling centers and toolroom drill presses. Features straight cylindrical shanks compatible with standard ER collets, end mill holders, and chucks.
Engineered specifically for aerospace manufacturing, portable air tooling, and restricted-clearance structural fixtures where standard shank diameters interfere with workpiece walls.
Designed for global OEM machinery, automotive components, and international fluid power manifolds matching ISO 4762 metric socket head fastener standards.
| Cap Screw Size | Cutter Diameter (Inches) | Pilot Diameter (Inches) | Shank Diameter (Inches) | Overall Length (OAL) | Recommended Material Group |
|---|---|---|---|---|---|
| #6 Fastener | 0.242" | 0.147" | 3/8" | 4-1/2" | Alloy Steel, Stainless Steel, Aluminum |
| #8 Fastener | 0.290" | 0.173" | 3/8" | 4-1/2" | Cast Iron, Tool Steel, Structural Steel |
| 1/4" Fastener | 0.406" | 0.266" | 3/8" | 4-1/2" | Carbon Steel, Non-Ferrous Alloys, Synthetics |
| 5/16" Fastener | 0.500" | 0.332" | 1/2" | 5-0/0" | Cast Iron, Stainless 304/316, Ductile Iron |
| 3/8" Fastener | 0.593" | 0.397" | 1/2" | 5-0/0" | High-Temp Alloys, Mold Steel, Cast Steel |
| 1/2" Fastener | 0.781" | 0.531" | 1/2" | 5-1/2" | Structural Plate, Titanium, Heavy Forgings |
| 5/8" Fastener | 0.968" | 0.656" | 3/4" | 6-0/0" | Heavy Mining Equipment, Manifolds, Valves |
| 3/4" Fastener | 1.156" | 0.781" | 3/4" | 6-0/0" | Power Generation, Heavy Stamping Dies |
As global manufacturing shifts toward higher spindle speeds, harder workpiece materials, and automated unattended machining, procurement teams and manufacturing engineers must evaluate cutting tool performance through the lens of total cost per hole rather than initial purchase price.
Modern CNC machine shops are increasingly replacing flood coolants with Minimum Quantity Lubrication (MQL) and near-dry machining. This shift demands counterboring tools with high heat-resisting carbide formulations. Rock River Tool’s C5/C6 grade carbide tips withstand temperatures in excess of 1,800°F without edge oxidation or braze line breakdown, making them ideal for high-speed counterboring in pre-hardened die steel and stainless steel alloys.
Inquire NowTo maximize throughput on 5-axis machining centers, high-volume production plants are moving away from multi-pass drilling, counterboring, and chamfering operations. The market demand for custom combination step counterbores—tools that drill the clearance hole, plunge the capscrew counterbore, and add a lead-in chamfer in a single axial stroke—is accelerating rapidly. Rock River Tool engineers custom combination tooling in-house to drastically cut tool change cycles.
Inquire Now
Global procurement directors are increasingly de-risking supply chains by partnering with established American cutting tool manufacturers. Rock River Tool provides 100% domestic quality control, short lead times, and direct engineering access to eliminate foreign freight bottlenecks and inconsistent tool hardness batches.
Inquire NowDerived from real shop-floor inquiries and AI intent data across global machining centers. Answered with absolute technical rigor under Google E-E-A-T guidelines.
A standard straight shank counterbore is typically designed to fit a wide range of general-purpose pilot diameters or interchangeable pilot pins for arbitrary hole sizing. In contrast, a Capscrew Counterbore is specifically engineered with fixed pilot and cutter dimensions matched directly to standardized socket head cap screw (SHCS) dimensions (such as ASME B18.3 or ISO 4762). The pilot diameter provides precise radial clearance for the bolt body, while the cutter diameter provides sufficient clearance for the cylindrical screw head and socket wrench tool access.
For counterbores exceeding 1/2 inch (12.7mm) in cutter diameter, solid carbide tools become extremely expensive and highly susceptible to catastrophic breakage under non-rigid setups, manual feeding, or interrupted cuts. A carbide tipped capscrew counterbore places micro-grain tungsten carbide exclusively at the cutting zone where high surface speeds occur, while utilizing a tough alloy steel body for the shank and core. The steel shank flexes slightly under side forces instead of snapping, offering maximum shock absorption, superior tool life on tough scale cast iron, and up to a 50% reduction in replacement cost per tool.
When counterboring medium carbon steel or 4140/4340 alloy steel (180-250 HB) using Rock River Tool C5/C6 carbide grade counterbores:
Chatter in counterboring operations is primarily caused by excessive tool deflection, lack of pilot alignment, or un-even chip loading across flutes. Rock River Tool eliminates chatter through three key engineering practices: (1) Grinding concentricity between the pilot pin and cutter flutes within ultra-tight optical tolerances; (2) Engineering positive axial rake angles on the face flutes to reduce plunging force; and (3) Precision heat-treating the alloy steel shank to maximize torsional rigidity.
Yes! Because the carbide tips are silver-brazed onto a robust steel matrix, Rock River Tool capscrew counterbores can be re-ground multiple times on face flutes and od margins without compromising the tool shank structural integrity. Re-conditioning restored tools back to original factory tolerances extends overall tooling ROI significantly compared to disposable indexable or solid carbide options.
The pre-drilled pilot hole must match the pilot diameter of the counterbore closely to ensure accurate guidance. Typically, the pre-drilled hole should be 0.002" to 0.005" larger than the pilot pin diameter. If the pilot hole is too loose, the cutter will wander and cause chatter; if the pilot hole is too tight, friction can cause the pilot pin to gall or bind inside the workpiece.
Yes. While our standard catalog line features straight cylindrical shanks, we regularly grind Weldon flats, double-flatted shanks, Morse taper shanks, reduced shanks for aircraft tooling, and custom extended lengths to customer drawings.
Since 1986, Rock River Tool, Inc. has stood as a premier American manufacturer of carbide tipped cutting tools, solid carbide chucking reamers, counterbores, and specialized milling cutters. Our commitment to cutting tool excellence is reflected in every stage of our production facility:
Need volume pricing for standard inventory or a fast engineering review of a custom counterbore print? Speak directly with our sales engineering team today.
